Low Pressure vs. High Pressure Butt Fusion Welding: How to Choose the Right Standard for Your HDPE Pipe Project
- Share
- Issue Time
- Jul 25,2025
Summary
Understanding the difference between low-pressure and high-pressure butt fusion welding is essential for project success. The right welding standard ensures joint strength, pipeline durability, and regulatory approval.
When choosing your next HDPE pipe welding machine, always match the equipment and welding method with your technical, environmental, and contractual requirements.
As HDPE and thermoplastic pipe systems are increasingly adopted in water, gas, mining, and industrial infrastructure, pipe fusion machines have become indispensable. However, not all fusion methods are created equal — and choosing the right fusion standard can directly impact your joint integrity, project compliance, and long-term performance.
In this article, we explore the two main categories of butt fusion welding: Low Pressure and High Pressure, outlining their key differences, applicable standards, industry usage, and how to determine the best fit for your project.
What Are Low Pressure and High Pressure Fusion Welding?
In the context of HDPE pipe welding machines, “pressure” refers to the interfacial pressure applied during the fusion process, which influences bead formation, heat soak timing, and cooling behavior.
Low Pressure Butt Fusion
.Welding Pressure: Typically 0.15 – 0.20 MPa (interfacial)
.Bead Appearance: Larger and more rounded fusion bead
.Cooling Time: Relatively longer
.Welding Standards:
.DVS 2207 (Germany)
.ISO 21307:2005 Double Pressure Standard
.GIS/PL2-08 (UK)
.AS/NZS 2033 (Australia/New Zealand)
High Pressure Butt Fusion
.Welding Pressure: Typically 0.40 – 0.60 MPa
.Bead Appearance: Thinner and flatter bead, faster transition
.Cooling Time: Shorter
.Welding Standards:
.ISO 21307:2011 Single High Pressure
.ASTM F2620 (USA)
.UNI 10520 (Italy)

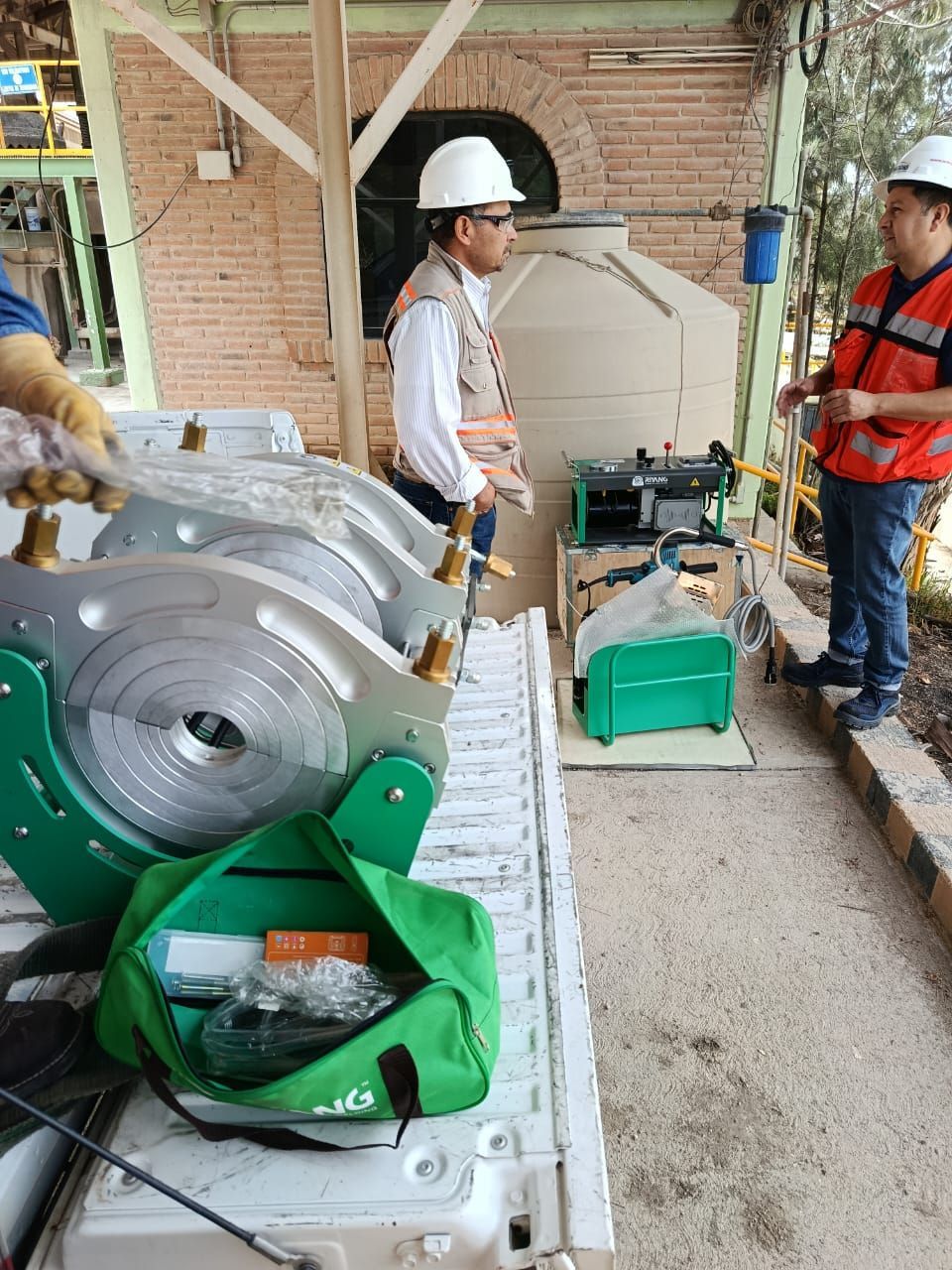

Riyang’s CNC and manual butt fusion welders support both welding pressure modes depending on project requirements. Our equipment can be customized to match local and international standards.
Industry Applications: Where Each Method Is Preferred
| Application Area | Preferred Method | Why |
|---|---|---|
| Municipal water supply | Low Pressure | Accepted by DVS and ISO; smooth joints, traceability |
| Natural gas pipelines | High Pressure | Shorter cooling, stronger fusion under pressure |
| Mining & slurry lines | High Pressure | Resists mechanical shock & high flow rates |
| Irrigation networks | Low or High (varies) | Based on pipe size and equipment availability |
| HDPE pipe fitting fabrication | Low Pressure | Ensures clean bead control for elbows, tees |
How to Select the Right Welding Standard for Your Project
When choosing a pipe fusion machine or determining the welding procedure, consider the following:
Project Specifications
– Review local building codes and client-specified standards (e.g. ASTM, ISO, or DVS).
Pipe Material and Size
– High-pressure standards are often used for thicker wall HDPE or large-diameter pipelines.
Regulatory Environment
– Projects in Europe may mandate DVS 2207, while the U.S. favors ASTM F2620.
Productivity & Site Conditions
– High-pressure welding allows faster cycles, ideal for large-volume field work.
Equipment Capability
– Ensure your HDPE welding equipment supports the required pressure range, control logic, and logging functions.
Riyang’s V Series, V-CNC Series, and ARMOR Series butt fusion welders are compatible with both low-pressure and high-pressure procedures. With digital control, adjustable parameters, and welding data storage, our machines offer unmatched flexibility.
Riyang’s Approach to Global Standards
As a trusted manufacturer of HDPE fusion machines, Riyang designs all pipe welding solutions with standard adaptability in mind. Whether your project requires:
.Low-pressure fusion for municipal water systems
.High-pressure fusion for high-load gas infrastructure
.Or multi-standard versatility for international contractors
Riyang offers equipment that meets your needs with precision and compliance.
Explore our full product range here:HDPE Welding Equipment by Riyang
Final Thoughts
Understanding the difference between low-pressure and high-pressure butt fusion welding is essential for project success. The right welding standard ensures joint strength, pipeline durability, and regulatory approval.
When choosing your next HDPE pipe welding machine, always match the equipment and welding method with your technical, environmental, and contractual requirements.
For professional advice or standard-matching equipment, talk to the experts at Riyang Fusion Manufacturing — your global partner in plastic pipe welding.
