Model
RYH3400A

Item specifics

Certificate
CE, ISO9001

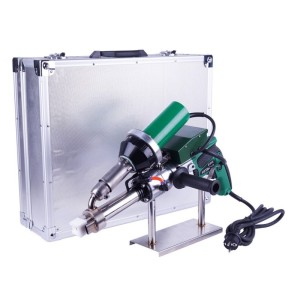

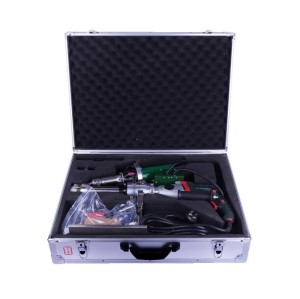

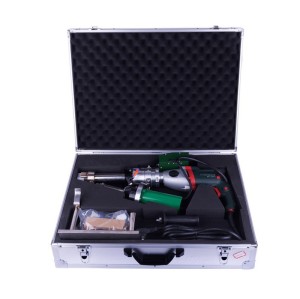

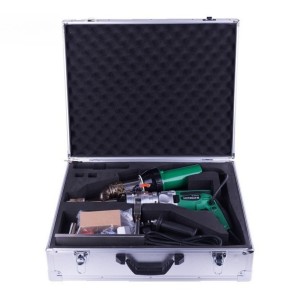

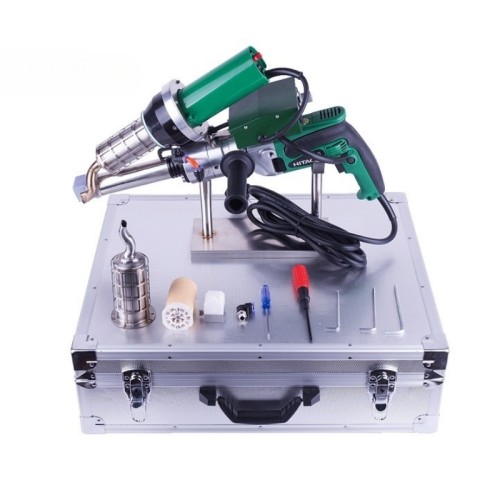

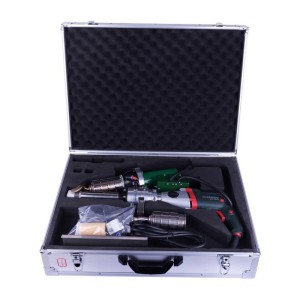

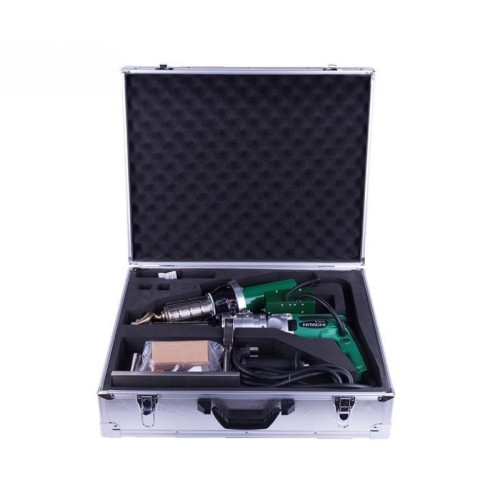

Packing Material
Aluminum Box
MOQ
1set

Review

Description

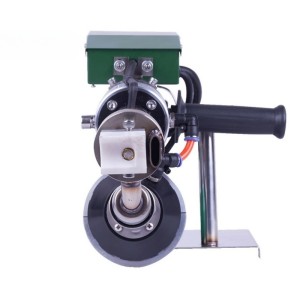

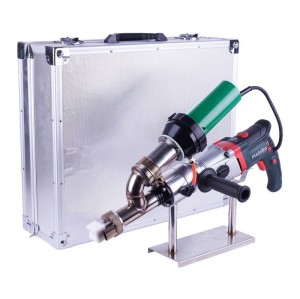

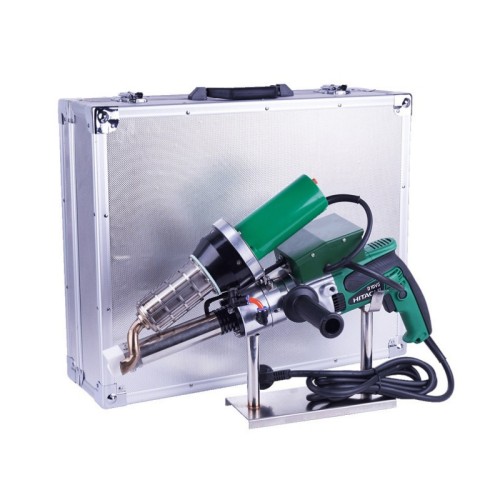

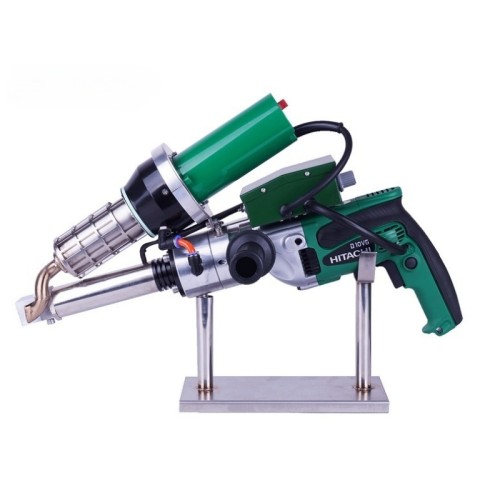

Extrusion Welder RYH3400A
This extrusion welder RYH3400A has functions of independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, which is applicable to weld PE, PP, PVDF and other hot melt materials.
Product Details
HEAT/FEED
DUAL HEATING / WELDING ROD
HOT AIR POWER
3400W
WELDING ROD HEATING POWER
800W
DRIVING MOTOR POWER
800W
HOT AIR TEMPERATURE
20℃ - 620℃
WELDING ROD EXTRUDING TEMPERATURE
200℃ - 380℃
VOLTAGE
220V, 50/60HZ
TEMPERATURE DISPLAY
YES
MOTOR COLD START PROTECTION
YES
EXTRUDING VOLUME
2KG/H
WELDING ROD MATERIAL AND SIZE
PP / PE ø3-4MM,
ø5MM CUSTOMIZED
DRIVING MOTOR
HITACHI
WELDED THICKNESS
8-40MM
NET WEIGHT
6.5KGS
butt fusion welding machine
hdpe welding machine for sale
poly welding machine
Dual Heating System
Welding rod feed heating system and hot air heating system ensure the best welding quality
Pipe Fusion Machine
Motor Cold Start Protection
Extruding motor will shut down automatically if it has not reached the preset melting temperature, which avoids loss caused by an operating mistake
Butt Welding Machine

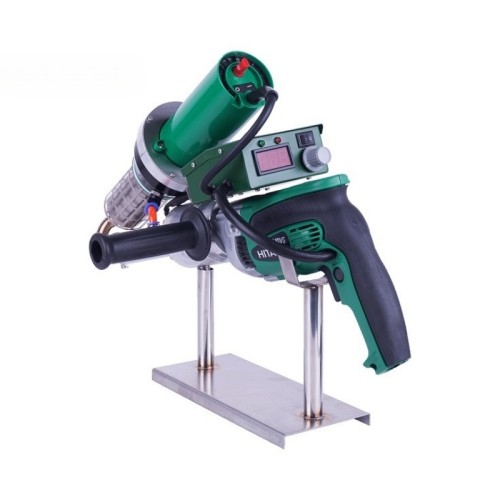

Digital Display Controller
Microcomputer chip controller makes easy operation and strong protection
Butt Fusion Machine
360-degree Rotating Welding Head
The 360-degree rotating hot air welding nozzle can be applied to different needs
Hdpe Pipe Welding Machine
Driving Motor
With imported German Metabo drill or Japanese HITACHI drill
