Model
RYH1600C

Item specifics

Certificate
CE, ISO9001
Packing Material

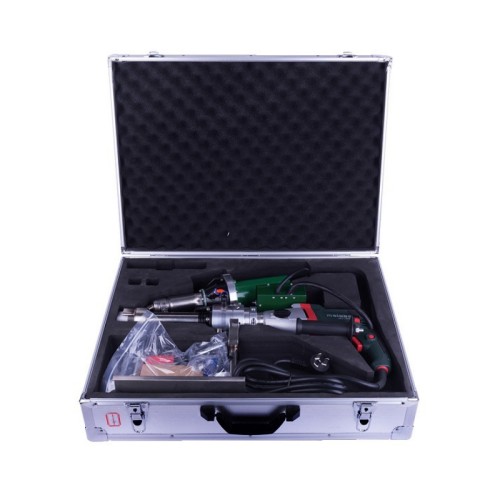

Aluminum Box
MOQ
1set

Review

Description

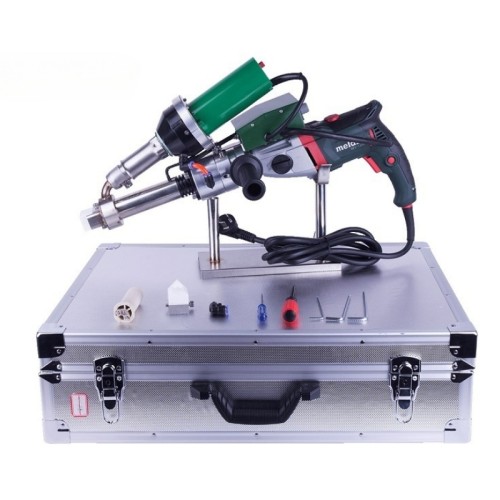

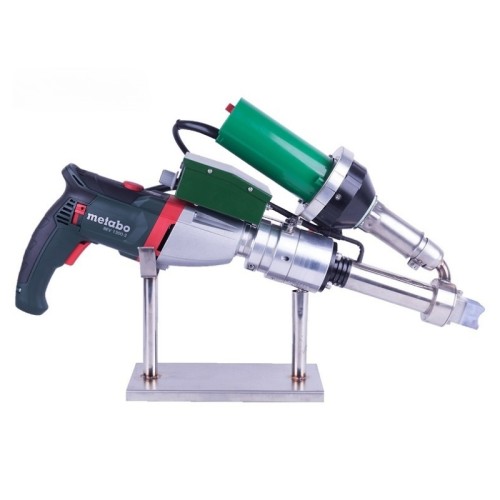

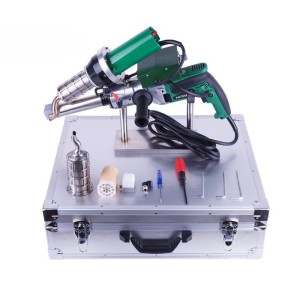

Extrusion Welder RYH1600C
This extrusion welder RYH1600C has functions of independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, which is applicable to weld PE, PP, PVDF and other hot melt materials.
Product Details
HEAT/FEED
DUAL HEATING / WELDING ROD
HOT AIR POWER
1600W
WELDING ROD HEATING POWER
800W
DRIVING MOTOR POWER
1300W
HOT AIR TEMPERATURE
20 - 620
WELDING ROD EXTRUDING TEMPERATURE
200 - 380
VOLTAGE
220V, 50/60HZ
TEMPERATURE DISPLAY
YES
MOTOR COLD START PROTECTION
YES
EXTRUDING VOLUME
2-2.5KG/H
WELDING ROD MATERIAL AND SIZE
PP / PE ø3-4MM,
ø5MM CUSTOMIZED
DRIVING MOTOR
METABO
WELDED THICKNESS
1-20MM
NET WEIGHT
7KG
Dual Heating System
Welding rod feed heating system and hot air heating system ensure the best welding quality
Motor Cold Start Protection
Extruding motor will shut down automatically if it has not reached the preset melting temperature, which avoids loss caused by an operating mistake

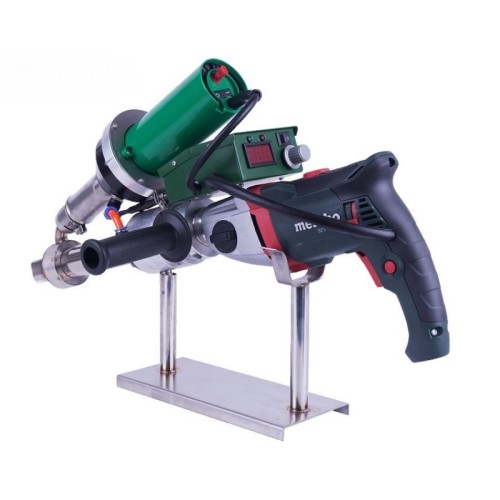

Digital Display Controller
Microcomputer chip controller makes easy operation and strong protection

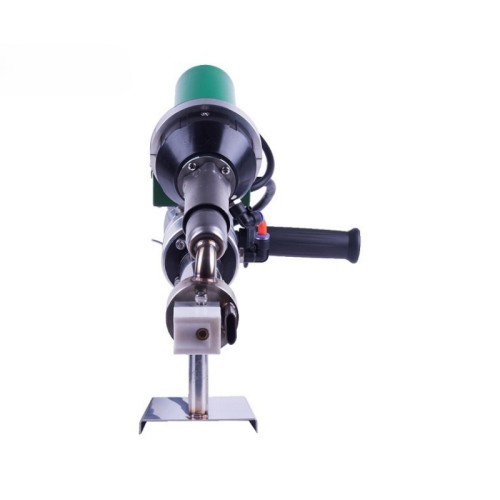

360-degree Rotating Welding Head
The 360-degree rotating hot air welding nozzle can be applied to different needs
Driving Motor
With imported German Metabo drill or Japanese HITACHI drill
