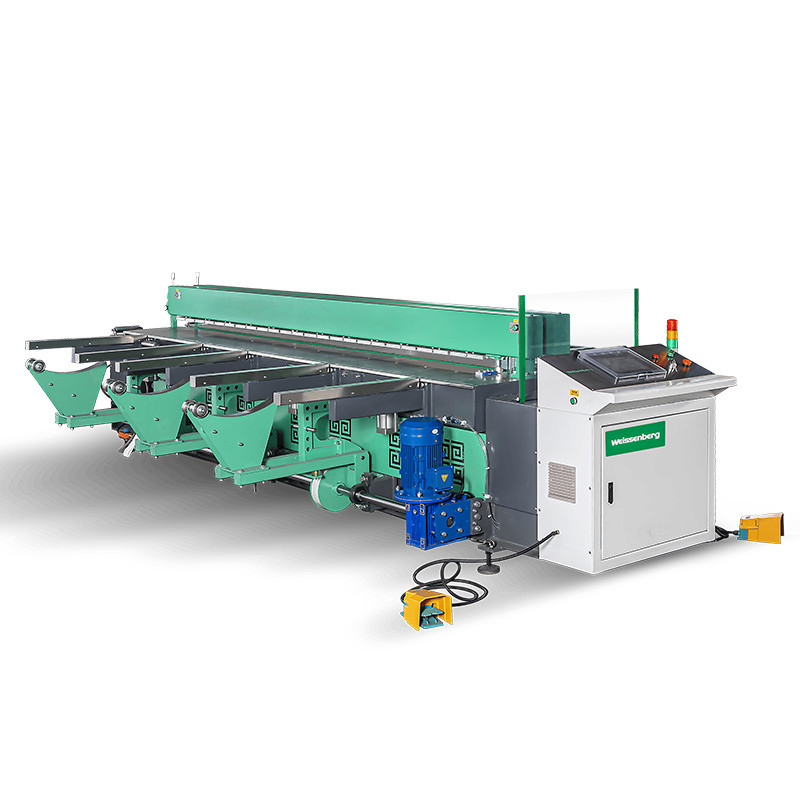

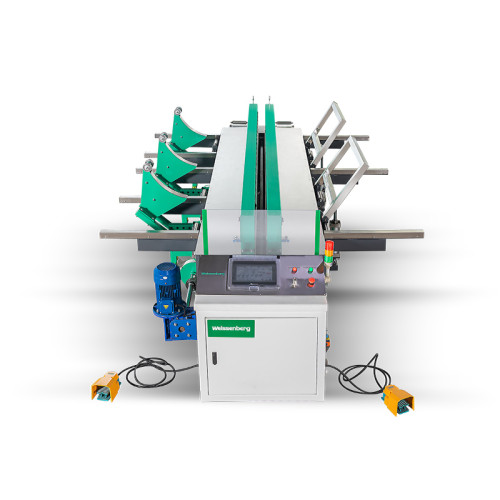

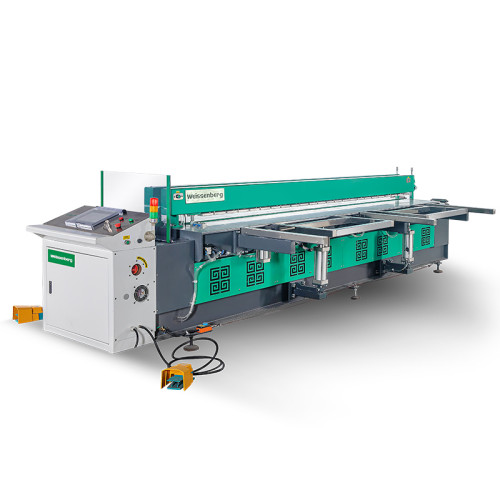

Plastic Sheet Butt Welding Machine RPH Series
- Model
- RPH1500, RPH2000, RPH3000, RPH4000, RPH4500, RPH5000, RPH6000
Item specifics
- Certificate
- CE, ISO9001
- Packing Material
- Plywood Box
- MOQ
- 1set
- Power
- Pneumatic
- Category
- Plastic Sheet Welding
- Weldable Material
- HDPE, PP, PVC, PVDF sheet, etc
- Welding Type
- Butt Welding
- Applicable Sheet Thickness
- 3mm-60mm
- Operation
- Automatic
Review
Description
Plastic Sheet Butt Welding Machine RPH Series
|
Product Details
|
|||||||||
|
MODEL
|
RPH1500 | RPH2000 |
RPH3000
|
RPH4000
|
RPH4500 | RPH5000 | RPH6000 | RPH7000 | |
MAX WORKING LENGTH | 1500MM | 2000MM | 3000MM | 4000MM | 4500MM | 5000MM | 6000MM | 7000MM | |
SHEET THICKNESS | 3MM-20MM | 3MM - 25MM | 3MM - 25MM | 3MM - 30MM | 3MM - 30MM | 3MM - 30MM | 3MM - 30MM | 3MM - 30MM | |
POWER CONSUMPTION | 3KW | 4KW | 6KW | 9KW | 9KW | 9KW | 12KW | 12KW | |
COMPRESSED AIR CONNECTION(bar) | 6-8 KG/CM² | ||||||||
SHEETING LOCKING CLAMPS | PNEUMATIC | ||||||||
WELDING SYSTEM | CNC | ||||||||
Featured by
· New steel structure, the mechanical synchronous transmission technology, through the pressure regulating valve, pressure in the weld region to achieve uniform.
· High-density locking clamps that provide a homogeneous pressure distribution
· Compliant with welding standards DVS 2207. Suitable for all types of thermoplastic sheets (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…).
· The Control system adopts a Mitsubishi PLC with an intuitive touch screen.
· According to the materials data, select specific welding pressure and temperature.
· 3mm-30mm welding ability, special welding thickness up to 40 to 60mm.
- Led lights through the entire welding area.
More Options

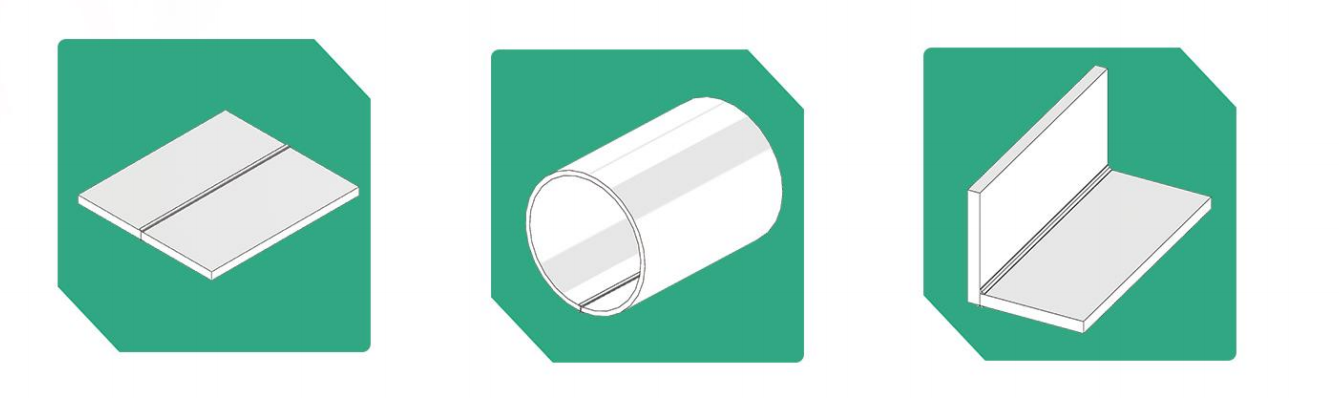

· 90°-welding device

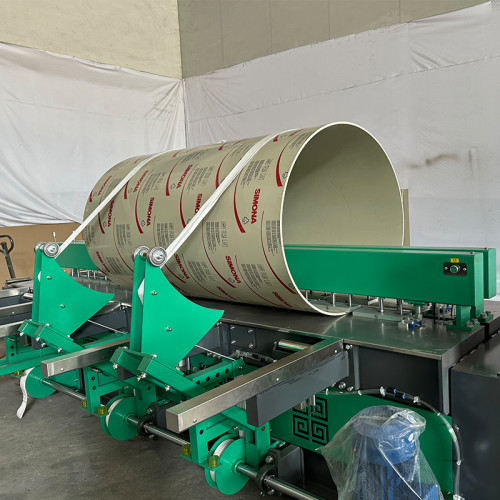

· Automatic cylinder welding
· Splitting of the clamping area into two or more areas
· Remote control (with cable)
· Signal horn
· USB interface to document the welding data on a USB stick
