Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
Model
V160M PII

Item specifics

Certificate
CE, ISO9001
Packing Material
Plywood Box
MOQ
1set
Range in inch
(2

Review

Description

Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)

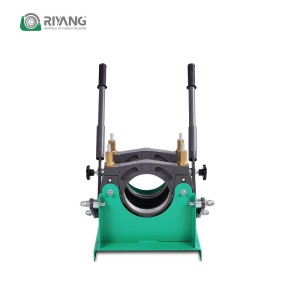

Riyang V series M is an on-site manual butt fusion welding machine with a pressure gauge.
It is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment by simply adjusting the clamps and drag bar.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF, and other thermoplastics material.
Product Details
WELDING RANGE O.D.
50MM - 160MM
POWER SUPPLY
1.8KW
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 300ºC
GROSS WEIGHT
68KGS
PACKING DIMENSION
450*480*420 MM
PACKING MATERIAL
PLYWOOD BOX
380*420*570 MM
HDPE Welding Machine
What makes the V160M PII stand out?
Versatility and Adaptability
Whether in an indoor workshop or an outdoor construction site, the V160M PII excels in both environments. Its robust design ensures reliable performance regardless of the location or conditions.
User-Friendly Design
The V160M PII features a hinged clamp design on its frame, making it exceptionally easy to operate and install. This design simplifies the setup process, allowing for quick and efficient deployment.
Superior Build Quality
Constructed from precision-machined aluminum, the V160M PII boasts exceptional strength and accuracy. The high-quality materials and meticulous craftsmanship ensure durability and long-term reliability.
Enhanced Trimming Performance
Equipped with a newly designed trimmer paired with a Makita electric drill, the V160M PII offers significantly improved performance. This combination provides precise and efficient trimming capabilities, enhancing overall productivity.
Advanced Hydraulic System
The V160M PII includes a hydraulic system that accurately reads pressure levels. Additionally, it can be equipped with RIYANG's PeWeldBank data logger, enabling detailed monitoring and recording of welding parameters for quality assurance and traceability.
HDPE Welding Data Logger
