Trailer Fusion Machine ARMOR 1200i Trailer 630mm-1200mm (24" IPS - 48'' IPS)

Model
ARMOR 1200i

Item specifics

Certificate
CE, ISO9001
Packing Material
Plywood Pallet
MOQ
1set
Working Range in MM
630mm - 1200mm
Working Range in Inch
24 - 48Inch
Working Pressure Range
0 - 180Bar
Welding Standard Applied
ASTM F2620-20, ISO 21307 SHP

Review

Description

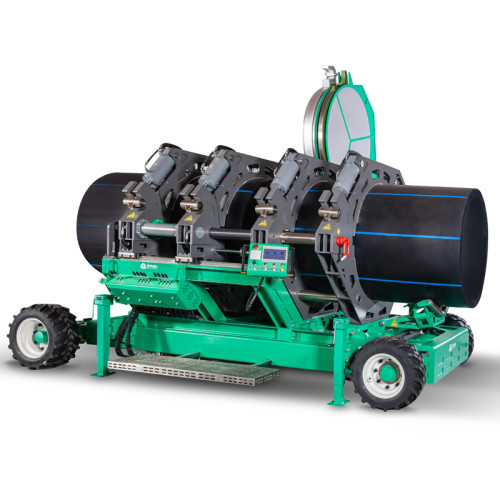

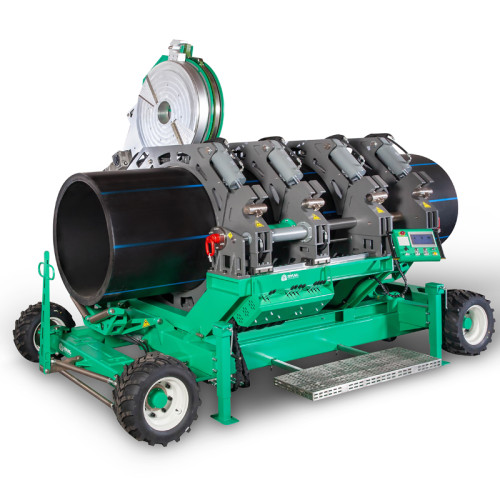

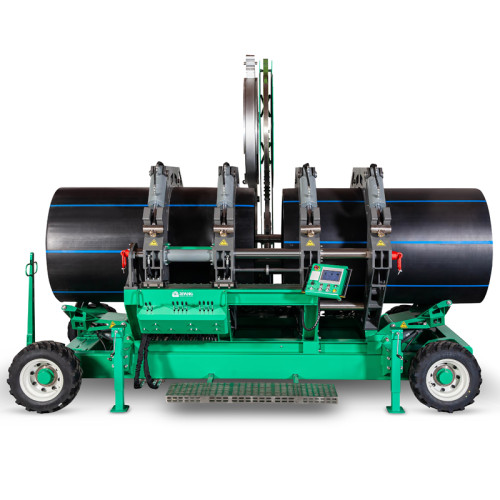

Butt Fusion Machine ARMOR 1200i Trailer 630MM-1200MM (24" IPS - 48'' IPS)

Riyang ARMOR 1200i is a high-performance hdpe pipe welding machine with trailer mobility, designed to excel on construction sites.

It boasts a welding range from 630mm to 1200mm or 24" to 48", adhering to ISO21307 and ASTM F2620 high-force standards.

With a fully automated system featuring SIEMENS PLC technology, ARMOR 1200i ensures precision and reliability.

This machine guarantees strength and accuracy for all your high pressure welding needs.
Product Details
Models
902306120, ARMOR 1200i
Automatic, High Force, 220/380V, 50/60Hz, 3 Phase
902307120, ARMOR 1200
Manual, High Force, 220/380V, 50/60Hz, 3 Phase
Capacity
Welding Range
630mm-1200mm, 24"IPS-48"IPS
Inserts Type
0 - 180BAR
Power
Heater
24KW
Trimmer
4KW
Electric Motor
11KW
Hydraulic
System Pressure
180 Bar (2610 PSI) Max.
Hydraulic Reservoir Capacity
95 Liters (25 Gallons)
Weight
Machine
7900 Kg (17380 lbs.), including inserts
Shipping
7900 Kg (17380 lbs.), including inserts
Chassis
Frame
Welded steel tube construction
Front Axle
Linkage
Tires
High-flotation inflatable tires
Transportation
Pulled via towing ring
Machine Carriage
Removable
Dimension
Machine
4500mm x 2770mm x 2650mm
177" x 109" x 104"
Machine Carriage
2567mm x 2770mm x 2190mm
101" x 109" x 86"
Shipping
4500mm x 2770mm x 2650mm
177" x 109" x 104"
Optional Configuration
Inserts
√
Stub End Device
√
Mobile Support Roller
√
Data Logger
Compatible with manual version
RIYANG ARMOR 355i Trailer fusion equipment

•The frame structure with a guide rail design enhances strength and even distribution of welding force


•Hydraulic pivoting heating plate with protection frame and insulated shield. Heating element is changeable


•Hydraulic pivoting high capacity trimmer driven by electric motor


•Removable machine chassis for in-ditch use


• Removable 4th jaw for enhanced convenience in fusing prefabricated fittings onto the pipe


•Strong jaws and inserts keep pipe from slipping during fusion


• Hydraulic pipe lift on both sides aimed in loading and unloading pipe


• Rugged outriggers for stability


•Hydraulic clamping


•Data logger (PEWELDBANK) is compatible (manual version)


• emovable control panel with data-logging, memory up to 10,000 welding reports; USB port for welding data download / firmware upgrade


• Easy welding procedure achieved by operator just pressing the button

• Remote troubleshooting
