Model
ARMOR 630i

Item specifics

Certificate
CE, ISO9001
Packing Material
Plywood Box
MOQ
1set
Working Range in MM
200mm - 630mm
Working Range in Inch
8 - 24Inch
Working Pressure Range
0 - 180Bar
Welding Standard Applied
ASTM F2620-20, ISO 21307 SHP

Review

Description

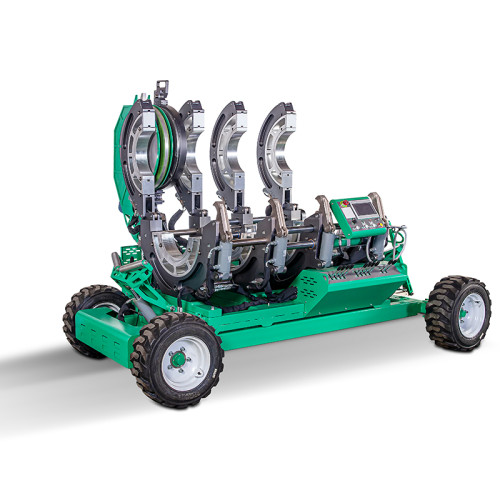

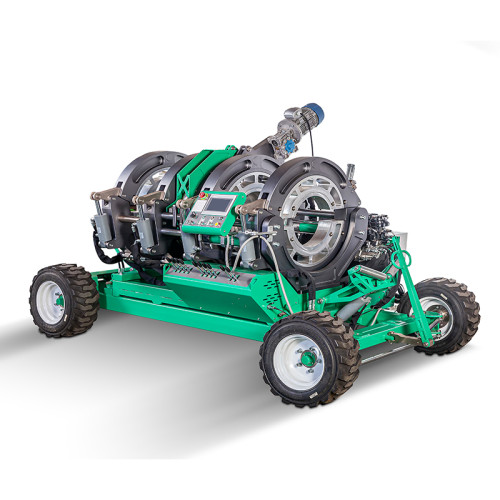

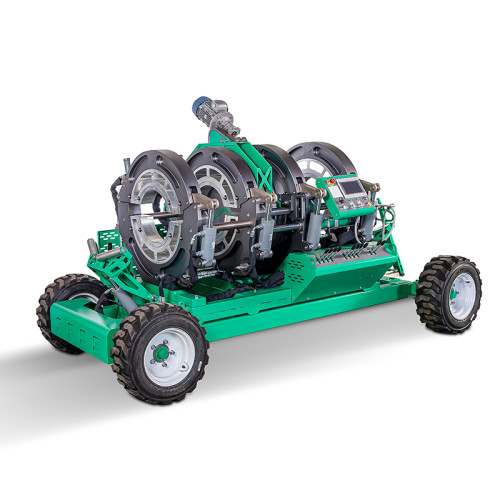

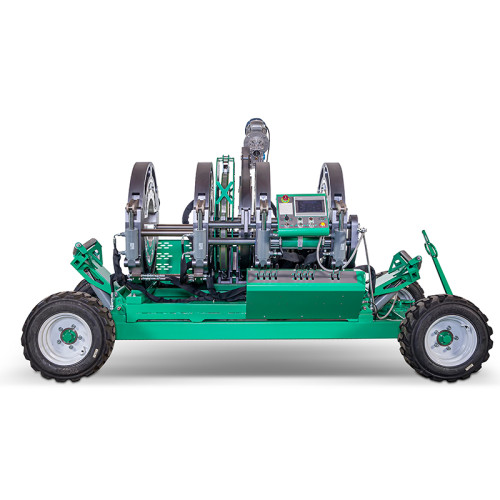

Trailer Butt Fusion Machine ARMOR 630i 200MM-630MM (8" IPS - 24'' IPS)

Riyang ARMOR 630i is a high-performance fusion welding machine with trailer mobility, designed to excel on construction sites.

It boasts a welding range from 200mm to 630mm or 8"IPS to 24"IPS, adhering to ISO21307 and ASTM F2620 high-force standards.

With a fully automated system featuring SIEMENS PLC technology, ARMOR 630i ensures precision and reliability.

Crafted from premium aluminum components, this machine guarantees strength and accuracy for all your welding needs.
Product Details
Models
902306630, ARMOR 630i
902306024, ARMOR 24i
Automatic, High Force, 220/380V, 50/60Hz, 3 Phase
902307630, ARMOR 630
902307024, ARMOR 24
Manual, High Force, 220/380V, 50/60Hz, 3 Phase
Capacity
Welding Range
200mm-630mm, 8"IPS-24"IPS
Inserts Type
Quick Fit
Power
Heater
10 KW
Trimmer
1.5 KW
Electric Motor
3 KW
Hydraulic
System Pressure
180 Bar (2610 PSI) Max.
Hydraulic Reservoir Capacity
95 Liters (25 Gallons)
Weight
Machine
1750 Kg (3850 lbs.), excluding inserts
Shipping
2080 Kg (4576 lbs.), including inserts
Chassis
Frame
Welded steel tube construction
Front Axle
Linkage
Tires
High-flotation inflatable tires
Transportation
Pulled via towing ring
Machine Carriage
Removable
Dimension
Machine
3000mm x 1625mm x 1790mm
118" x 64" x 70"
Machine Carriage
1680mm x 1150mm x 1080mm
66" x 45" x 42"
Shipping
3000mm x 1625mm x 1790mm
118" x 64" x 70"
Optional Configuration
Inserts
Stub End Device
Mobile Support Roller
Data Logger
Compatible with manual version
RIYANG ARMOR 630i Trailer HDPE fusion equipment

•The dual-axis structural frame ensures strength and even distribution of welding force


•On-board heating plate with protection frame and insulated shield


•On-board high-capacity trimmer driven by electric power


•Removable machine chassis for in-ditch use


•Removable trimmer for welding short spigot


• ISO inserts with quick install/release system


• Strong jaws and inserts keep the pipe from slipping during fusion


•Hydraulic pipe lift used to loading and unload pipe


•Data logger (PEWELDBANK) is compatible (manual version)


• Removable control panel with data-logging, memory of up to 30000 welding reports; USB port for welding data download/firmware upgrade


• Easy welding procedure achieved by operator just pressing the button
