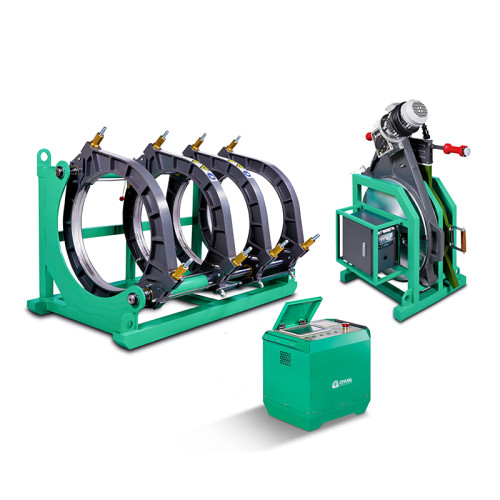

Automatic Butt Fusion Machine V500 200MM-500MM (8"IPS - 20''IPS)
- Model
- V500 CNC
Item specifics
- Certificate
- CE, ISO9001
- Packing Material
- Plywood Box
- MOQ
- 1set
- Working Range in mm
- 200mm - 500mm
- Working Range in inch
- 8" - 20"IPS
- Working Pressure Range
- 0 -120Bar
- Fusion Welding Standard Applied
- ISO21307, DVS2207 etc
- Operation Type
- Automatic
Review
Description
Hydraulic Butt Fusion Machine V500CNC20 200MM-500MM (8" IPS -20'' IPS)
The RIYANG CNC2.0 is a premium, high-stability automatic butt fusion machine powered by a Siemens PLC. It is manufactured to meet rigorous standards including ISO 12176-1 for butt-fusion welding of thermoplastic pipes and the EU Machinery Directive 2006/42/EC.
The system supports pre-programmed welding standards conforming to major industry standards such as DVS, ISO, and ASTM. Custom standards can be incorporated on demand.
Welding records can be exported via USB, saved as PDF, and key parameters (time, operator, standard, welding result) can be printed on adhesive labels for on-site traceability. The machine’s memory supports storing up to 10,000 weld logs.
During welding, the system provides real-time alerts if key parameters—voltage, temperature, or pressure—are outside specified ranges, enabling immediate corrective action and maximizing weld integrity.
Welding parameters can be tailored to specific pipe materials and ambient conditions, enhancing flexibility and ensuring optimal weld results under varied conditions.
Backed by a 2-year industry-leading warranty.
|
Product Details
|
|||
|
Welding Range O.D. (mm)
|
200mm - 500mm
|
Welding Range O.D. (inch)
|
8" IPS -20'' IPS
|
Power Supply | 380V±10%, 50/60HZ | Temperature Range | Max. 280ºC |
Heater Power | 7.3 kW | Packing Dimension | 1580*1000*960 mm |
|
Trimmer Power
|
1.5 kW
|
1030*680*1200 mm
|
|
|
Pump Power
|
1.5 kW
|
800*350*400 mm
|
|
Working Pressure Range | 0 - 120 Bar | Gross Weight | 510 kgs |
Integrated User Interface
Features a unified control panel that enhances operator efficiency and minimizes errors. Mechanical push-buttons are accompanied by status indicator lights, allowing real-time monitoring of the machine's operating status.
Versatile Control Box
One control box is compatible with machine models 450, 500 and 630, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.
Effortless Drag Pressure with Just One Click
Remote Diagnostics & Firmware Upgrades
