Fitting Fabrication Machine ATLA1600 CNC 1000MM - 1600MM (36" - 63" IPS)
- Model
- ATLA1200 CNC
Item specifics
- Certificate
- CE, ISO9001
- Packing Material
- Plywood Box
- MOQ
- 1set
- Working Range in mm
- 1000mm - 1600mm
- Working Range in Inch
- 36" IPS - 63" IPS
- Fabricated Fitting Type
- Bend, Tee, Cross & Wye
- Weldable Materials
- HDPE, PP, PVDF etc.
- Fusion Welding Standard Applied
- ISO21307, DVS2207, ASTM F2620 etc.
Review
Description

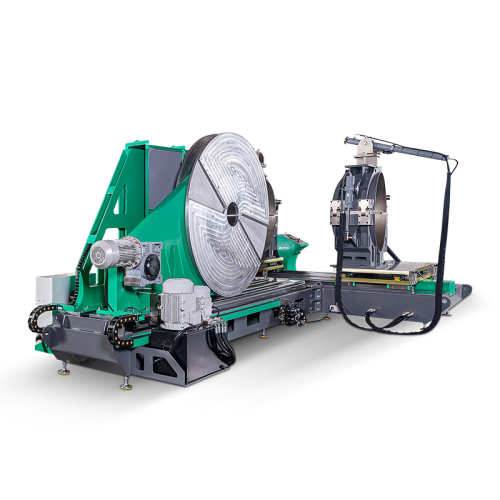

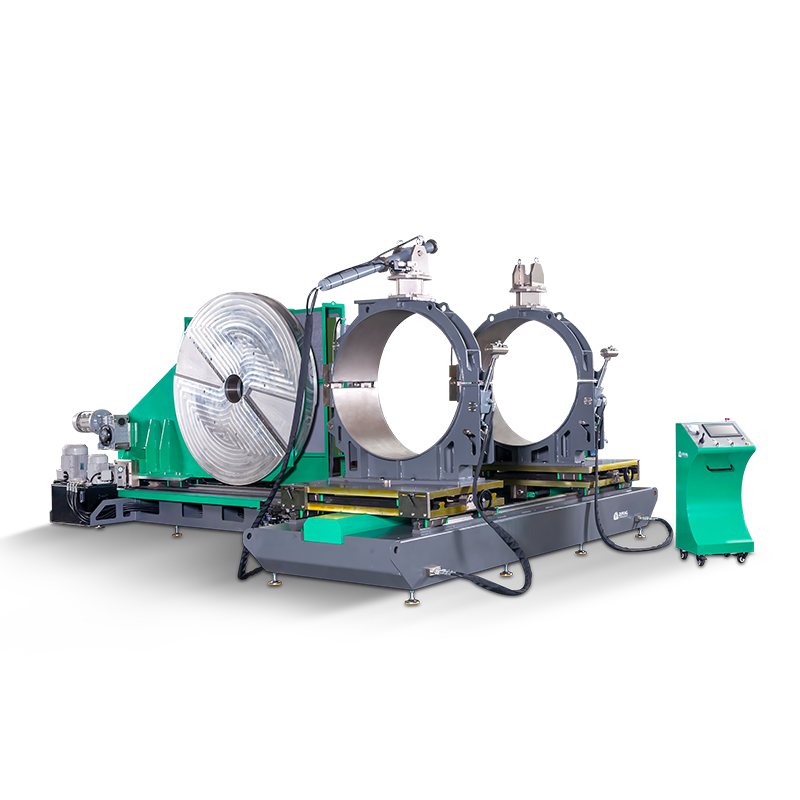

Fitting Fabrication Machine ATLA1600 CNC 1000MM-1600MM (36" IPS - 63" IPS)
ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses up to 1600mm, and wyes up to 1600mm.
With the help of jaws, it could make different fittings of various sizes.
The ATLA1200 CNC welding machine could weld plastic materials like HDPE, PP, PVDF.
|
Product Details
|
|||
|
ELBOWS
|
OD 1000MM - 1600MM
( 0º - 90º ) |
TEES & CROSSES
|
OD 1000MM - 1600MM
|
WYES ( *OPTION ) | OD 1000MM - 1600MM ( 45º or 60º ) | MATERIALS | HDPE - PP - PVDF |
TOTAL POWER | 120 KW | POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ |
Standard Composition
Featured by
- A machine body with two working tables, both driven by the hydraulic system;
- A operation panel with an automatic control system makes the whole welding process in a simple, efficient, and precise way. After setting the welding data (SDR, Pipe diameter, Standard requirement ), the welding machine will start welding automatically, so that the operators could mainly focus on the welding process, stay away from other interference. And the build-in memory could record the welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or automatically read out by connecting a printer;
- A milling cutter with hydraulic movement in/out, started by an electrical motor;
- A Teflon coated heating plate with hydraulic movement in/out;
- With a full set of aluminum inserts and steel clamps, which make fittings elbows, tees, and crosses.
- Wyes clamps φ1600 (45°and 60°): inserts from 1000mm to 1400mm
- Clamps for welding flange necks
- Imperial inserts
- Hydraulic open/close elbows clamp
- Hydraulic open/close tees and crosses clamp
- Hydraulic locking
