Nano Fitting Fabrication Machine FUSENANO110, 20MM-110MM (1/2"IPS - 3" DIPS)

Nano Fitting Fabrication Machine FUSENANO110, 20MM-110MM (1/2"IPS - 3" DIPS)

Model: FUSENANO110

Item specifics

Certificate: CE, ISO9001

Packing Material: Plywood Box

MOQ: 1set

Working Range in mm: 20mm - 110mm

Working Range in Inch: 1/2"IPS - 3" DIPS

Fabricated Fitting Type: Bend

Weldable Materials: HDPE, PP, PVDF etc.

Review

Description

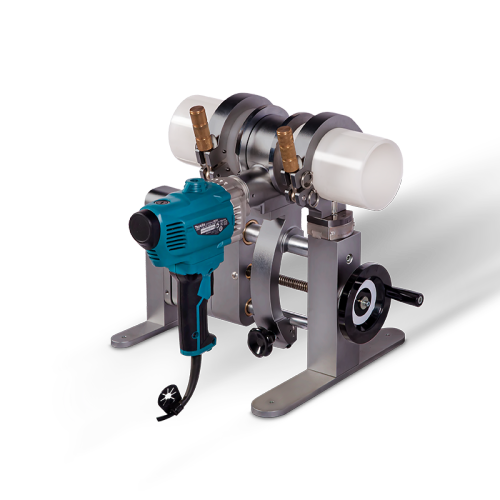

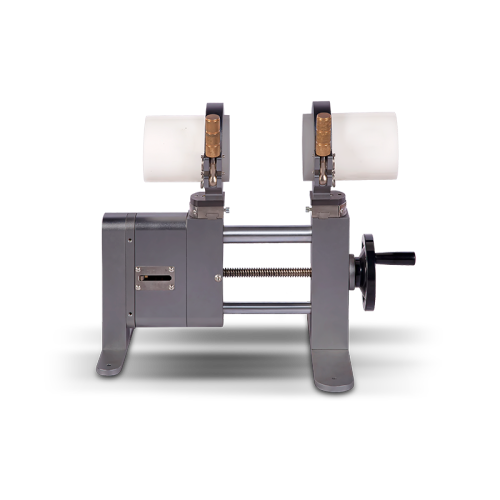

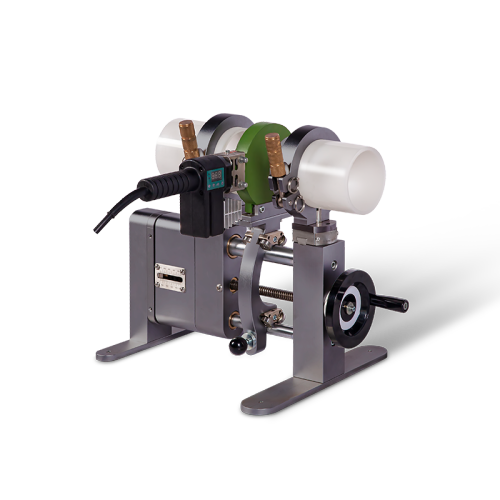

Nano Fitting Fabrication Machine FUSENANO110 20MM-110MM

FUSENANO 110 is a compact and professional butt-welding solution for PE, PP, and PVDF pipes and fittings, covering all pressure classes from O.D. 20 mm to 110 mm. Designed for maximum versatility, it offers a user-friendly, portable system that performs seamlessly both on construction sites and in workshop environments. With its unique handling and smart engineering, FUSENANO 110 delivers the reliability and flexibility that modern pipe welding professionals demand — in a compact footprint that fits wherever you need it.

Product Details
Elbow	OD 20mm - 110mm ( 0º - 30º )	Weldable Materials	HDPE, PP, PVDF, PPR etc
Maximum Force	900 N	Inserts Type	Single Layer
Rated Power	1850 W	Power Supply	^{220V, 50HZ}
Total Packages	1 Box	Net Weight	25 kgs, Excluding inserts

• The machine's chassis features horizontally adjustable clamps, allowing precise positioning of pipes in both sides before welding—a critical advantage for achieving optimal results in segmented bend welding applications.

• The upper and lower clamps, as well as the installation of the reducing inserts, are secured using locking pins, ensuring a simple and quick setup. This design is especially convenient during overhead welding operations, making clamps assembly and adjustment much easier when the machine is suspended.

• The rotating clamps can be precisely locked at angles ranging from 0°to 15°for both butt and miter welds, enabling the fabrication of bends up to a maximum of 30°.
