Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
Model
ATLA315E

Item specifics

Certificate
CE, ISO9001
Packing Material
Plywood Box
MOQ
1set
Working Range in mm
90mm - 315mm
Working Range in Inch
3" IPS - 12" IPS
Fabricated Fitting Type
Bend, Tee, Cross & Wye
Weldable Materials
HDPE, PP, PVDF etc.
Fusion Welding Standard Applied
ISO21307, DVS2207, ASTM F2620 etc.

Review

Description

Overview


The ATLA315E is a robust and cost-effective manual HDPE fitting fabrication machine designed to produce high-quality plastic fittings such as elbows, tees, crosses, and wyes. Suitable for pipe sizes ranging from 90mm to 315mm, this machine is ideal for workshop-based fabrication of fittings made from HDPE, PP, and PVDF.
Specifically engineered to meet the demands of utility contractors and plastic pipeline fabricators, the ATLA315E offers precise manual control, a durable structure, and a user-friendly interface for small to medium-diameter fabrication needs.
Technical Specifications
Welding Range in mm
90mm - 315mm
Welding Range in inch
3" IPS - 12" IPS
Fittings Types Fabricated
0°–90° (Elbow, Tee, Cross), 45°/60° (Wye)
Applicable Materials
HDPE, PP, PVDF
Control System
Manual
Power Supply
380V, 50Hz
Total Power Consumption
7.25 kW

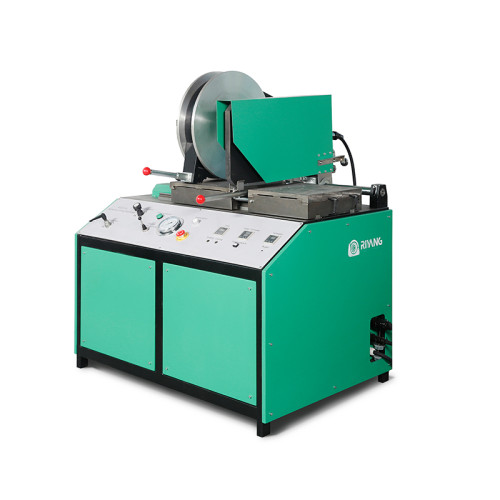

hdpe fitting fabrication machine ATLA315E

Multi-Fitting Capability

> Fabricates elbows, tees, crosses and wyes (90–315mm) with precision using adjustable clamp sets.

Manual Control System

> Reliable and intuitive manual operation allows the welder to manage key welding steps and fine-tune pressure and alignment.

Stable Heating System

> Equipped with a durable, Teflon-coated heating plate offering consistent thermal performance and quick heat-up cycles.

Compact and Portable

> The machine’s small workshop footprint and modular design make it easy to position, operate, and maintain.

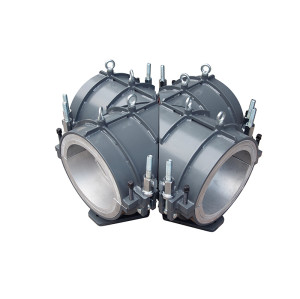

- Wyes clamps covering ranges φ90 to φ315 (45° & 60°)
- Stub flange holder
- Narrow clamps
- Hydraulic closing and opening clamps
- Hydraulic locking and unlocking clamps
- Top fasten cylinder
- Data logger
- CNC system
