Geomembrane Hot Air Welder RYG800
- Model
- RYG800
Item specifics
- Certificate
- CE, ISO9001
- Packing Material

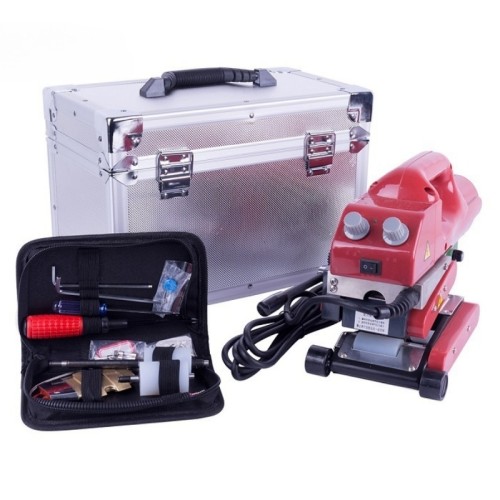

- Aluminum Box
- MOQ
- 1set
Review
Description

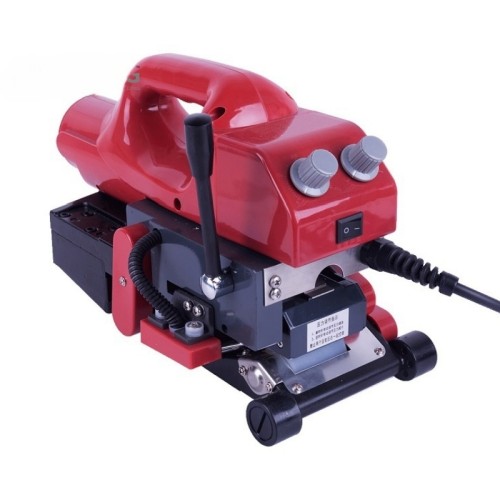

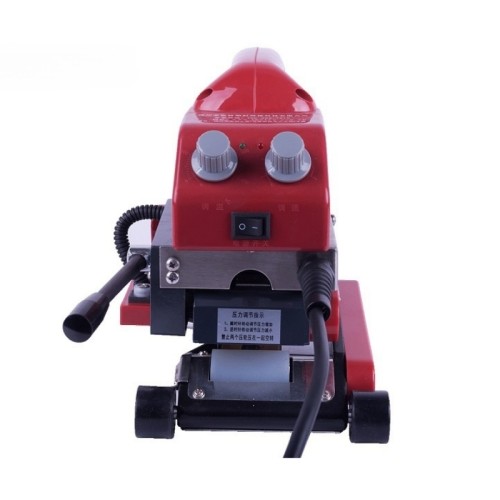

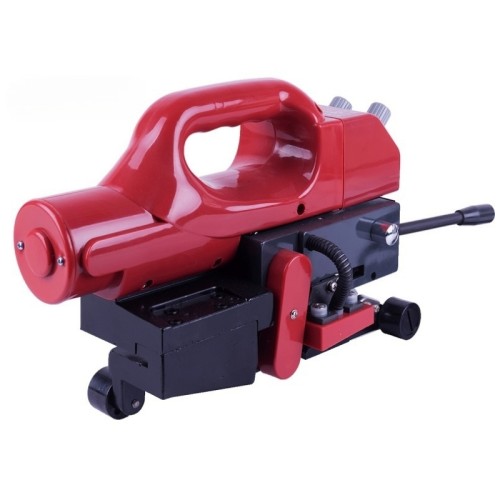

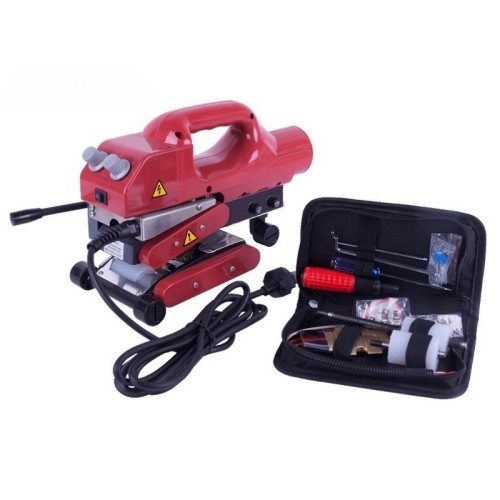

Geomembrane Hot Air Welder RYG800
Geomembrane Hot Air Welder RYG800 is small, light, high welding efficient, and without a digital display.
This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.
|
Product Details
|
|||
|
VOLTAGE
|
220V, 50/60HZ
|
DIGITAL DISPLAY
|
NO
|
WELDING SPEED | 0.5 - 5M/MIN | HEATING TEMPERATURE | 0 ℃ - 450 ℃ |
MATERIAL THICKNESS WELDED | 0.5MM, 2.0MM | OVERLAP WIDTH | 10CM |
SEAM WIDTH | 12.5MM*2, INTERIOR CAVITY 12MM | SEAM STRENGTH | ≥ 85% MATERIALS (TENSILE RESISTANT IN SHEAR DIRECTION) |
|
NET WEIGHT
|
5KGS
|
INSULATION CLASS |
CLASS II
|
Standard Production
Moulding Process
Pressure Adjustment
Pressure adjusted based on the material and thickness
Pressure Roller
Imported silica gel pressure roller; steel pressure roller is special for welding over 1.00mm thickness.
Heating System
Customized metal hot wedge with powerful heating elements
