Geomembrane Hot Air Welder RYG900
- Model
- RYG900
Item specifics
- Certificate
- CE, ISO9001
- Packing Material
- Aluminum Box
- MOQ
- 1set
Review
Description

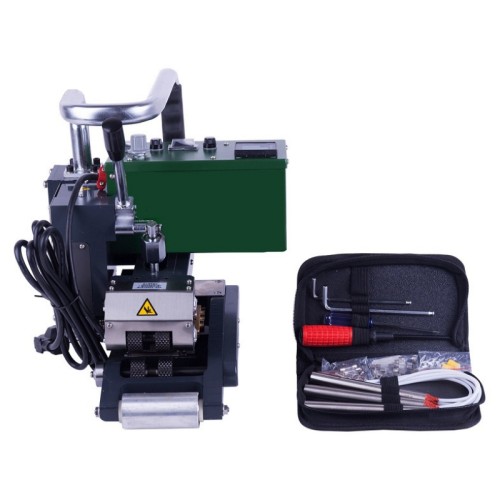

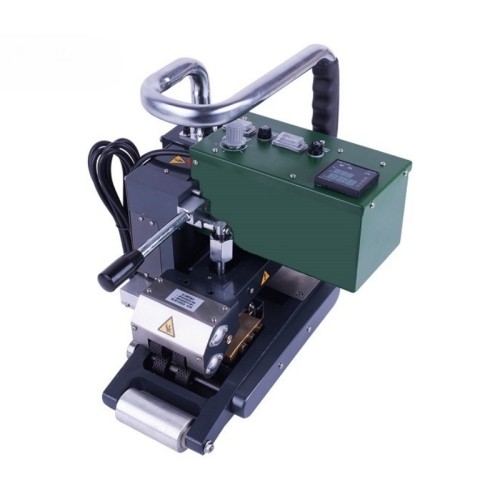

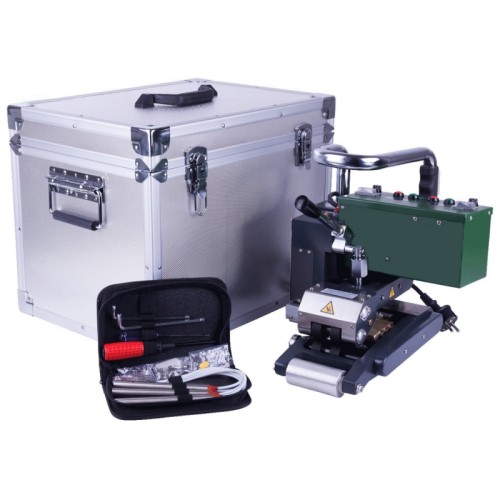

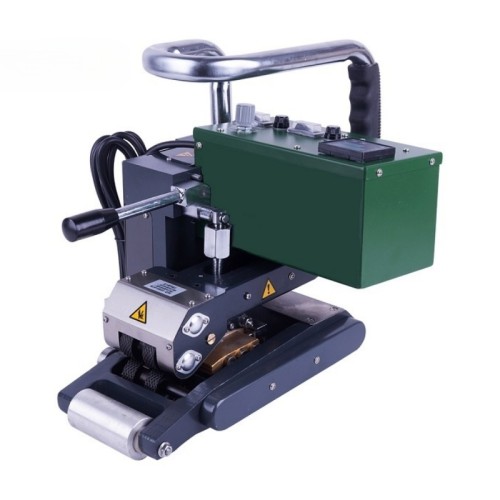

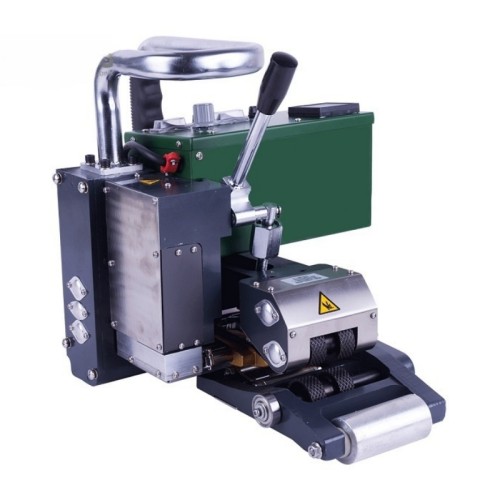

Geomembrane Hot Air Welder RYG900
Geomembrane Hot Wedge Welder RYG900 adopts an advanced hot wedge structure. With its high power, high speed, and pressure, it welds 1.0 - 3.0mm thickness hot melting materials such as HDPE, LDPE, PVC, EVA, ECB, PP, and others.
This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.
|
Product Details
|
|||
|
VOLTAGE
|
220V, 50/60HZ
|
POWER
|
1800W
|
WELDING SPEED | 0.5 - 5M/MIN ADJUSTABLE | HEATING TEMPERATURE | 20 ℃ - 450 ℃ ADJUSTABLE |
MATERIAL THICKNESS WELDED | 1.0MM - 3.0MM (SINGLE LAYER) | OVERLAP WIDTH | 12CM |
SEAM WIDTH | 15MM*2, INTERIOR CAVITY 15MM | SEAM STRENGTH | ≥ 85% MATERIALS |
|
NET WEIGHT
|
13KGS
|
DIGITAL DISPLAY |
TEMPERATURE DISPLAY
|
Control System
Advanced intelligent digital control system.
Drive System
High power and torque motor combined with double precise driving motion
Pressure Adjustment System
Advanced "T" style jib design and pressure regulation structure
Pressure Roller
Special stainless steel pressure rollers with a strong pressure force
Heating System
Powerful metal hot wedge and special heating system design
- Railway/ highway subway tunnel waterproof construction;
- Water conservancy projects, man-made landscape;
- Riverbank, aquaculture farm;
- Refuse landfill, sewage treatment;
- Chemical, mining industry;
- Construction waterproofing projects.
