Geomembrane Hot Air Welder RYG1200
- Model
- RYG1200
Item specifics
- Certificate
- CE, ISO9001
- Packing Material

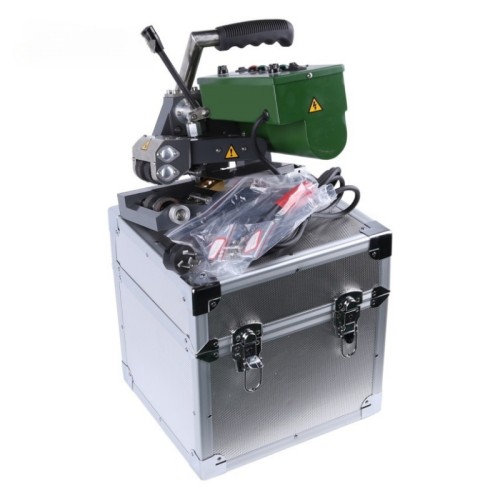

- Aluminum Box
- MOQ
- 1set
Review
Description

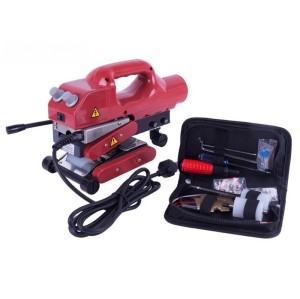

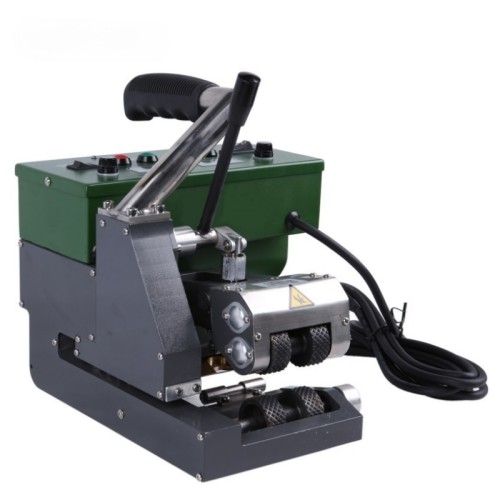

Geomembrane Hot Air Welder RYG1200
Geomembrane Hot Air Welder RYG1200 adopts an advanced hot wedge structure. With its high power, high speed, and pressure, it welds 0.2mm - 2.0mm thickness hot melting materials. RYG1200 is of welding way towards one edge.
This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.
|
Product Details
|
|||
|
VOLTAGE
|
220V, 50/60HZ
|
POWER
|
1300W
|
WELDING SPEED | 0.3 - 5M/MIN ADJUSTABLE | HEATING TEMPERATURE | 20 ℃ - 450 ℃ ADJUSTABLE |
MATERIAL THICKNESS WELDED | 0.2MM - 2.0MM (SINGLE LAYER) | OVERLAP WIDTH | 12CM |
SEAM WIDTH | 15MM*2, INTERIOR CAVITY 15MM(*customized) | SEAM STRENGTH | ≥ 85% MATERIALS |
|
NET WEIGHT
|
7.5KGS
|
MEMBRANE LAYING WAYS |
MEMBRANE LAYING WAY TOWARDS ONE EDGE
|
Control System
Advanced intelligent digital control system.
Pressure Adjustment System
Advanced "T" jib design and pressure regulation structure

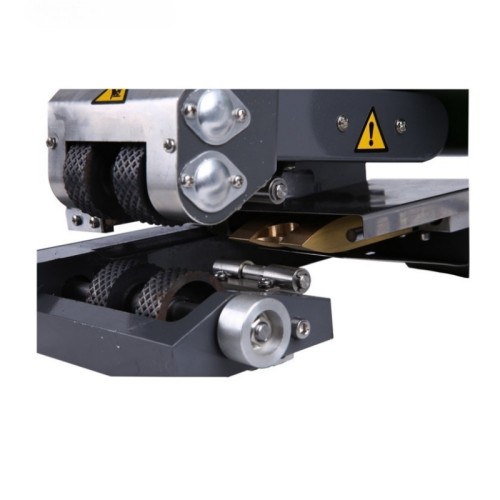

Pressure Rollers
Special stainless steel pressure rollers with a strong pressure force
Heating System
Powerful metal hot wedge and special heating system design
Membrane Laying Structure
Membrane laying way towards one edge
- Railway/ highway subway tunnel waterproof construction;
- Water conservancy projects, man-made landscape;
- Riverbank, aquaculture farm;
- Refuse landfill, sewage treatment;
- Chemical, mining industry;
- Construction waterproofing projects.
